Top Sale High Quality Active SMD Buzzer

    Payment Type: T/T
    Min. Order: 1000
    Productivity: 500000 Piece/Pieces Per Month
    Place of Origin:  Guangdong, China (Mainland)
    Supply Ability: 500000 Piece/Pieces Per Month
    Certificate:  ISO9001
  • Mr. Catherine Zhou

Basic Info

Model No.:  buzzer

Product Description

  • Model NO.: buzzer
  • Transmission Mode: Air-conduction
  • Transducer Principle: Piezoelectric Earphone
  • Radiation Mode: Indirect Radiation Type
  • WORD nChannels: 7.1Channel
  • Rated Voltage: 5V
  • Max.Current Consumption: 30mA
  • Min. Sound Output at 10cm: 85dB
  • Storage Temperature: -30~+80ºC
  • Diameter: 10mm~53mm
  • Trademark: Xuhai
  • Specification: Mulit Dimensions
  • Category: Buzzer
  • Cone: Paper Cone
  • Style: Mini
  • Usage: Accept
  • Certification: ISO9001
  • Operating Voltage: 4-7V
  • Resonant Frequency: 2300Hz±300
  • Operating Temperature: -20~+70ºC
  • Housing Material: PPO
  • Color: Black
  • Transport Package: Box Packaging(50cm*32cm*32cm)
  • Origin: Guangdong, China (Mainland)

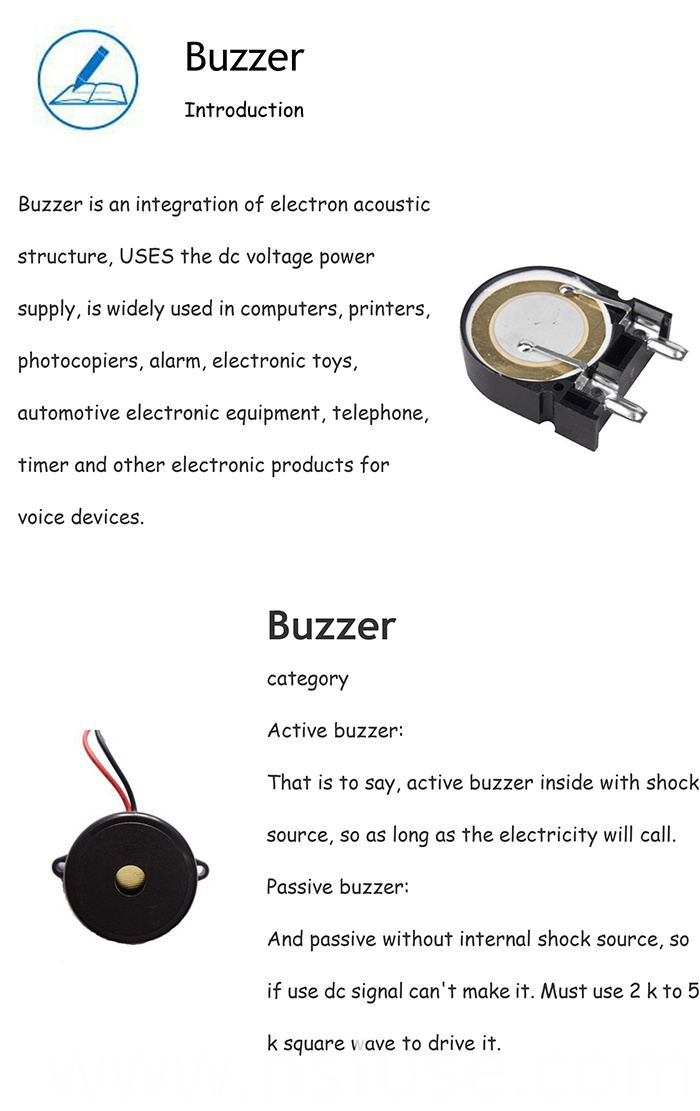

Buzzer Characteristics:

Buzzer is divided into magnetic buzzer and piezoelectric buzzer two kinds.
Magnetic buzzer for conductive coil vibration pronunciation, characteristics of small volume;
Piezoelectric buzzer for piezoelectric ceramic chip pronunciation, characteristic, current is small.

ELECTRICAL SPECIFICATIONS:

Customer: Part No:
Product: Magnetic Buzzers SWT Part No: 275+2305PF
Technical Terms
Rated Voltage (VDC) 5
Operating Voltage (VDC) 4~7
Max.Current Consumption (mA) 30
Min. Sound Output at 10cm(dB 85
Resonant Frequency (HZ) 2300±300
Operating Temperature (ºC) -20~+70
Storage Temperature (ºC -30~+80
Weight (g) 2.0
Housing Materia PPO
Buzzer Soldering process Soldering  Parameter
Temp.( ºC ) Time(Sec.) Times
Lead Free Reflow soldering 245±15 above  180ºC time 40~70 3
Wave soldering 255±5 4~8 2~3
Manual soldering 350±10 1~3 2~3

Top Sale High Quality Active SMD Buzzer
Top Sale High Quality Active SMD Buzzer

Top Sale High Quality Active SMD Buzzer

Contact us if you need more details on Buzzer. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Piezo Buzzer、Buzzer for Home Appliances. If these products fail to match your need, please contact us and we would like to provide relevant information.
