Em9745-PCB 9.7mm Omnidirectional Electret Condenser Microphone with Soldering (FBELE)

    Payment Type: L/C, D/P
    Min. Order: 1000
    Productivity: 5000PCS
    Place of Origin:  Ningbo
    Supply Ability: 5000PCS
    Certificate:  ISO9001, CCC
  • Mr. Catherine Zhou

Basic Info

Model No.:  EM9745-PCB

Product Description

  • Model NO.: EM9745-PCB
  • Transmission Mode: Air-conduction
  • Transducer Principle: Electrostatic Earphone
  • Radiation Mode: Direct Radiation Type
  • WORD nChannels: 7.1Channel
  • Brand: MURATA
  • Current Consumption: Max.0.5mA
  • S/N Ratio: More Than 58dB
  • Specification: ROHS
  • HS Code: 85318090
  • Category: Buzzer
  • Cone: Paper Cone
  • Style: Mini
  • Usage: Expand Volume
  • Certification: ISO9001, CCC
  • Frequency: 20-16000 Hz
  • Max. Sound Pressure Level: 115dB S.P.L
  • Trademark: FBELE
  • Origin: Ningbo

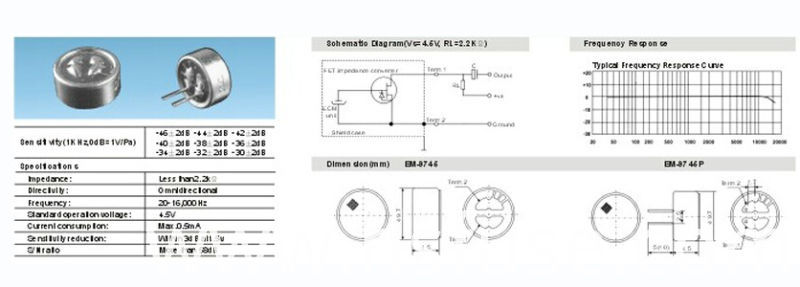

EM9745-PCB 9.7mm omnidirectional Electret Condenser Microphone with soldering(FBELE)


Em9745-PCB 9.7mm Omnidirectional Electret Condenser Microphone with Soldering (FBELE)
Sensitivity Range -42±3dBRL=2.2KΩVs=2.0V(1KHz 0dB=1V/Pa)
Impedance Max. 2.2KΩ 1KHz (RL=2.2KΩ)
Frequency 20-16000 Hz
Current Consumption Max.0.5mA
Operation Voltage Range 1.0V-10V
Max. Sound Pressure Level 115dB S.P.L
sensitivity reduction 3.0V-1.5V Sensitivity Variation less than 3dB
S/N ratio more than 58dB
Environmental  Protection  Regulation HF
Condenser Microphone with soldering Electret Condenser Microphone
