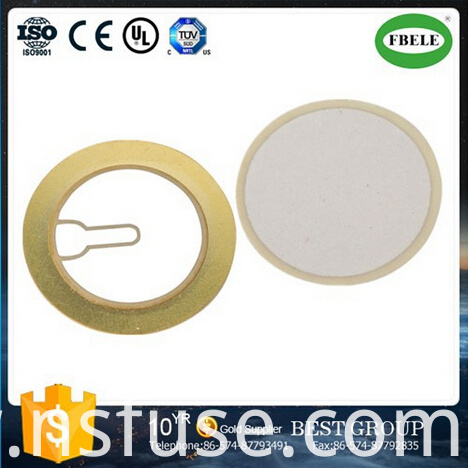

Ft-27t-2.5A1 Chinese Piezo Element Ceramic Piezo Element Piezoelectric Diaphragms (FBELE)

    Payment Type: T/T, D/P, Paypal
    Min. Order: 1000
    Productivity: 5000PCS
    Place of Origin:  Ningbo
    Supply Ability: 5000PCS
  • Mr. Catherine Zhou

Basic Info

Model No.:  FT-27T-2.5A1

Product Description

Model NO.: FT-27T-2.5A1 Transmission Mode: Air-conduction Transducer Principle: Electrostatic Earphone Radiation Mode: Indirect Radiation Type WORD nChannels: 7.1Channel Size: 27 Specification: ROHS HS Code: 85318090 Category: Speaker Cone: Polypropylene and Titanium Edge Style: Head-mounted Usage: Accept Brand: Fbele Trademark: FBELE Origin: Ningbo FT-27T-2.5A1 Chinese  piezo element ceramic piezo element piezoelectric diaphragms (FBELE)


Ft-27t-2.5A1 Chinese Piezo Element Ceramic Piezo Element Piezoelectric Diaphragms (FBELE)
No Part No Fr(KHz) Zr(ΩMAX) Cp(±30%nf) D d T t
1 FT-27T-2.5A1 2.5 ±0.5 250 45 27 20 0.24 0.21
2 FT-12T-5.8B1 5.8±0.3 500 12 12 9 0.12 0.05
3 FT-15T-6.0A1 6.0±0.5 350 12 15 11 0.23 0.1
4 FT-20T-6.5A1 6.5±0.2 350 12 20 15 0.43 0.2
5 FT-20T-3.6A1 3.6±0.3 350 24 20 14.7 0.24 0.1
6 FT-27T-4.0A1 4.0±0.3 350 20 27 20 0.43 0.2
7 FT-31T-4.0A1 4.0±0.5 300 45 31 20 0.24 0.1
8 FT-35G-3.2B1 3.1±0.2 200 26 35 25 0.55 0.3
9 FT-35T-2.8B1 2.8±0.5 200 24 35 25 0.55 0.3
10 FT-41T-1.0A1 2.8±0.2 300 66 41 25 0.22 0.1
11 FT-50T-2.9A1 2.5±0.5 500 30 50 25 0.43 0.2

FBELE Company, (Ningbo Best Group Co., Ltd. ) are Chinese leading manufacturer and distributor in electronic components. We can offer quality products in very competitive price for electronics components, as well as best service, in time delivery, small order acceptable, etc.


Contact us if you need more details on Ft-27t-2.5A1 Chinese Piezo Element Ceramic Piezo Element Piezoelectric Diaphragms (FBELE). We are ready to answer your questions on packaging, logistics, certification or any other aspects about China Piezo、China Piezo Buzzer. If these products fail to match your need, please contact us and we would like to provide relevant information.
