High Voltage Planar Resistor High Voltage Resistor

  • High Voltage Planar Resistor High Voltage Resistor
  • High Voltage Planar Resistor High Voltage Resistor

High Voltage Planar Resistor High Voltage Resistor

    Payment Type: L/C
    Productivity: 1000000pieces/Year
    Supply Ability: 1000000pieces/Year

Product Description


High Voltage Planar Resistor

Resistor is called resistor directly in daily life. It is a current limiting element. After the resistor is connected to the circuit, the resistance value of the resistor is fixed. Generally, it has two pins, which can limit the current through its connected branch.

Quantity:Single Connection


Shape:Planar
Application:Medical Apparatus and Instruments
Trademark:SHV
Transport Package:Carton
Origin:China
HS Code:8533211000

Features:
Non-inductive design
Resistance up to 10TΩ
Rated voltage up to 30KV
TCR as low as ±25ppm/ºC
VCR as low as ±0.1ppm/V
Excellent high-frequency characteristics and high reliability
Customization available


Physical Characteristics:
Construction: Ceramic chip
Case: Conformal coat epoxy or silicone resin
Lead Material: Tinned copper solid wire, AWG as specified in selection table
Lead Strength: Capable of withstanding a five pound pull force axially

Electrical Characteristics:
Rated Voltage: Up to 30KV (DC)
Resistance Range: UP to 10TΩ
Tolerance: ±0.5% to ±30%
TCR: Min ±25ppm/ºC
VCR: as low as ±0.1ppm/V
Rated Power: 0.5W to 5W
Stability: ±0.5% to ±2% (1000hours, 125ºC)
Overload: ±0.5% to ±2% (5 seconds @150% rated power)
Climate Category: 55/125/56

Applications:
High voltage planar resistors (RF Series) are suited for all the fields of high voltage and small signal multiply. Such as:
High voltage power supply Medical electronical devices
Audiophile speakers Audio systems
Smoke sensors Infrared detectors
Radiation detectors Special gas detectors


Selection Table:


High Voltage Planar Resistor

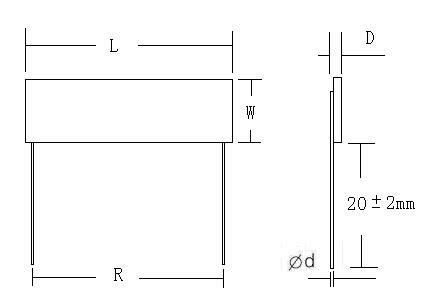

RF Series L(MM) W(MM) R(MM) Φd(MM) Rated Power(W) Rated Voltage(KV)
RF13 13.00 3.50 10.20 0.60 0.50 4.00
RF26 26.00 6.00 23.00 0.60 0.70 7.50
RF30 30.00 7.00 27.50 0.60 1.65 10.00
RF40 40.00 7.00 37.50 0.60 3.00 20.00
RF50 50.00 7.00 47.50 0.60 4.00 24.00
RF51 50.00 13.00 47.50 0.60 5.00 30.00

High Voltage Planar Resistor
